The Scantronic 9853EN is a fully programmable, 16 zone (2- wire FSL) security panel designed to conform to PD6662:2004 Grade 3 system requirements. The panel includes an integral dialler modem that can communicate any alarm activation or service information to an Alarm Receiving Centre.

Expandable up to 40 zones using wired or 868MHz narrowband wire-free expanders, the 9853EN provides flexibility whatever your security requirements. Wire-free expanders eliminate the need for complex wiring further minimising disruption to your décor during installation.

The 9853EN is ideally suited to both home, commercial and industrial security applications. It combines maximum flexibility with ease of use to provide security, when and where you need it. Simple A, B, C and D setting options allow you to split the system into four individually-controllable sub-systems letting you set either the whole or just parts, or any combination.

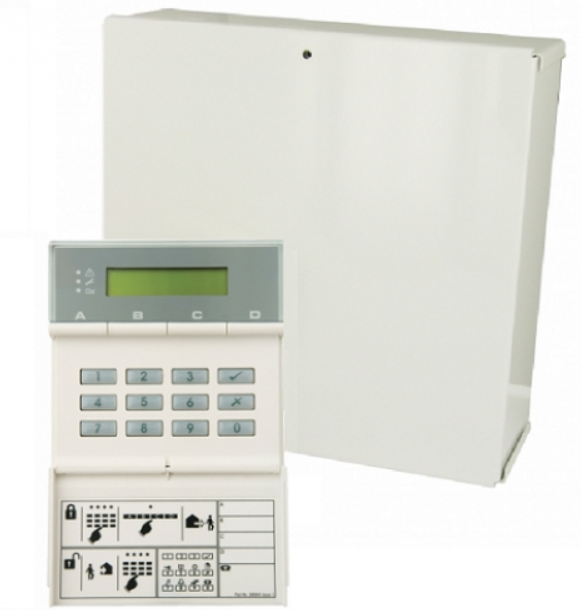

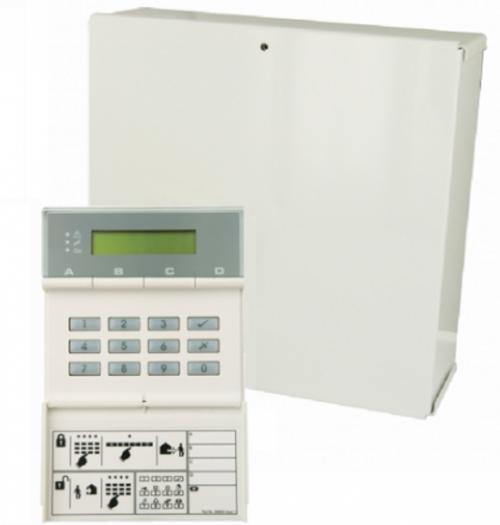

Up to 4 attractive remote keypads can be added to any system. The 9943 keypad supplied (as pictured) uses a 4 or 6-digit PIN code to control system operation. An integral electronic reader simplifies operation and minimises the chance of error by allowing operators to use a personal-encrypted, key-ring proximity tag instead of a code.

The panel’s integral 2400/300 baud CCITT V21 full-duplex modem is used for alarm and service communication, secondary outputs can operate other communication devices such as BT RedCare STUs. To reduce maintenance, the 9853EN has full remote upload/download capability allowing your installer to program and perform diagnostic tests without having to visit your premises.

Features

• Fully compliant with EN50131, PD6662: 2004 Grade 2 or 3 DD243: 2004

• 8 onboard, fully programmable zones (CC with individual tampers or EOL)

• 16 onboard, fully programmable zones (FSL)

• 12 fully programmable secondary communications plug-by and Scantronic plug-on foot print outputs

• 8 fully programmable panel outputs (2 relay and 6 transistorised)

• Choice of hard-wired or 868MHZ narrowband radio expanders

• Built-in multi-format communicator and 2400/300 BAUD full duplex modem

• Full (A) and 3 part-set options (B, C and D)

• Alarm reports can be Fast Format, Contact ID or SIA 1, 2 or 3

• Full remote or local UDL – remote control, remote servicing and system diagnostics via PC-based Windows

• Built-in RS232 serial port for programming and diagnostics

• Accepts up to 4 x 9941EN or 9943EN LED keypads
